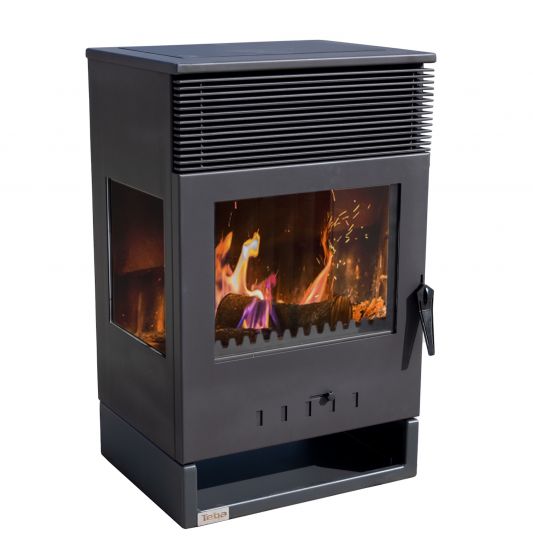

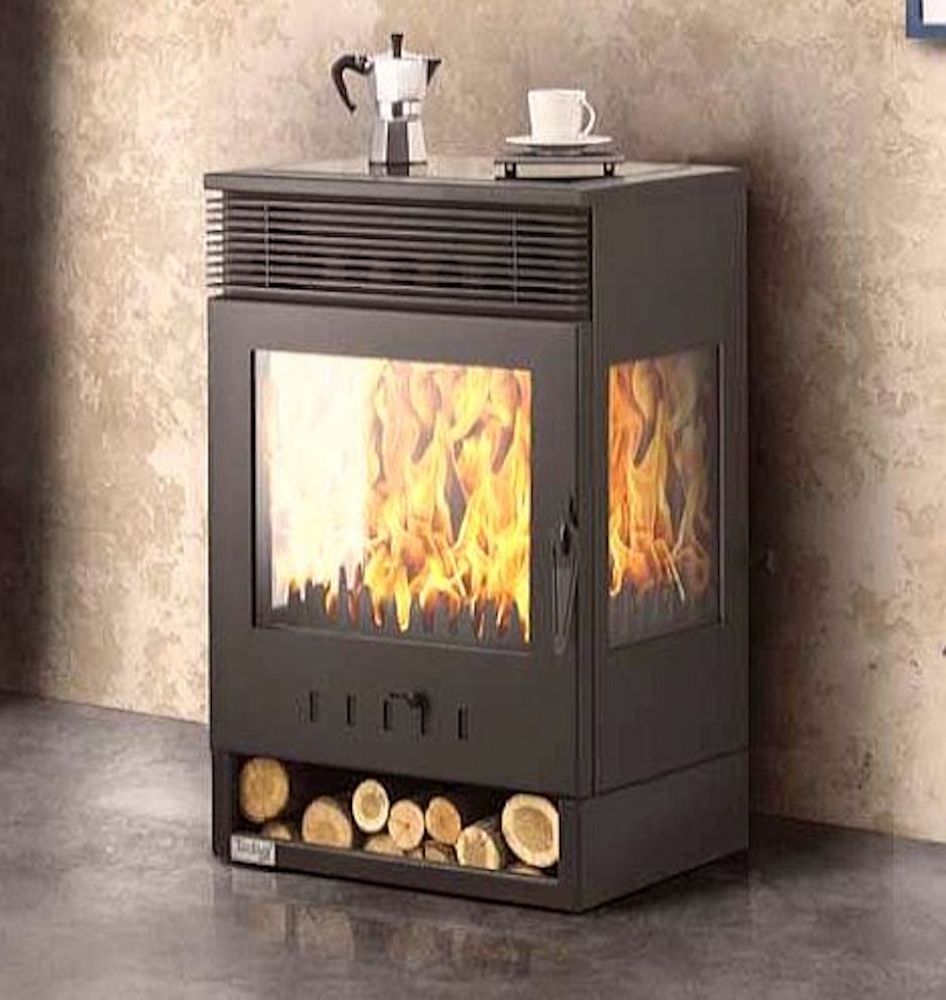

Heat up your home with this high-quality wood-burning stove. Thanks to its elegant and modern look, this stove blends seamlessly into any room.
Glazed on three sides. Removable ash compartment.

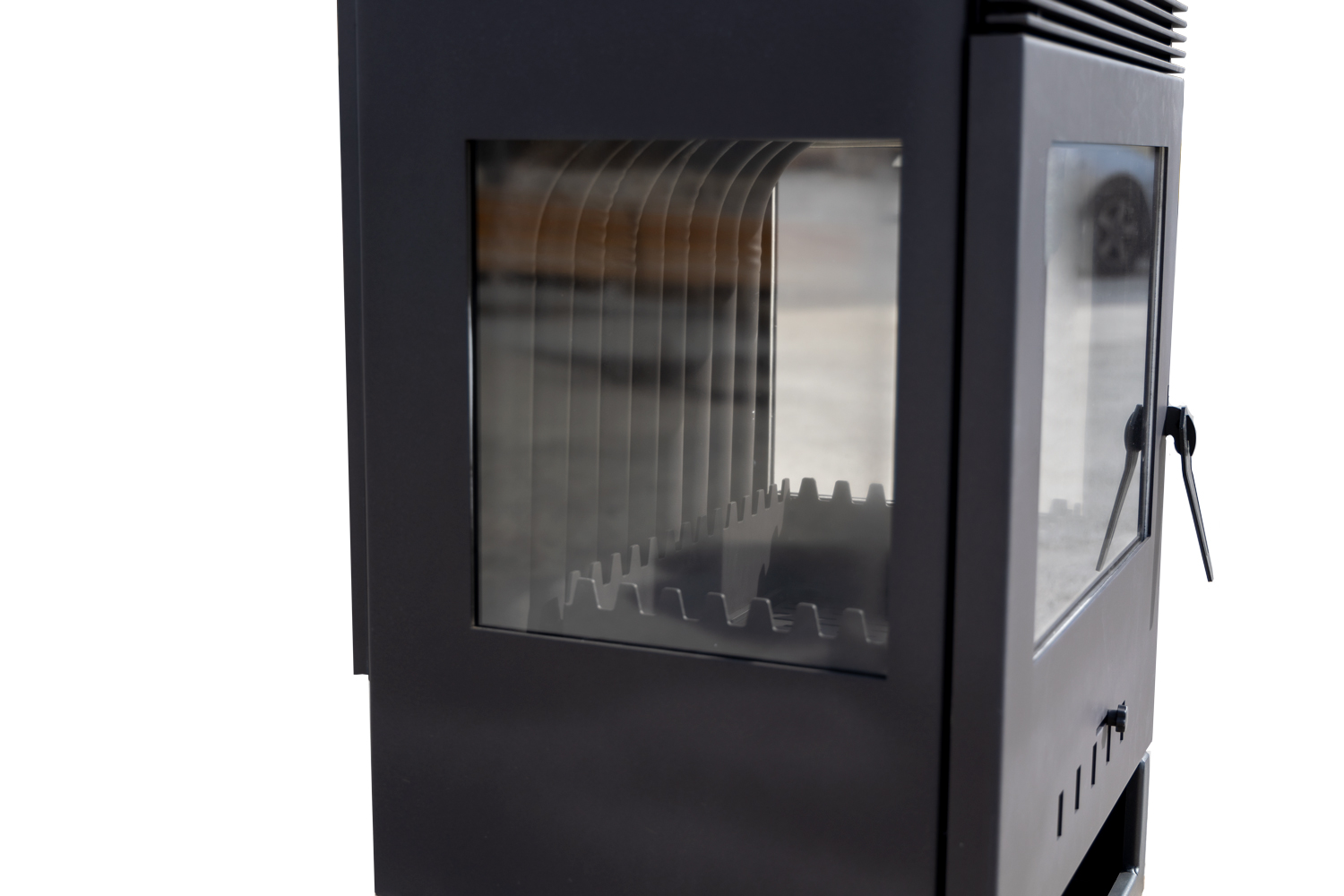

Thanks to the three fireproof panes to the firebox, you create the impression of a panoramic fireplace.
The design of the Teba stoves enables precise control of the temperature intensity and easy combustion and ash cleaning.
The state-of-the-art primary and secondary draught control allows the user to instantly control the intensity of the fire.
At the rear of the combustion chamber there are several pipes for heating the air.
Air circulation draws in cold air in the pipes from below and heats it; the heated air passes through the pipes above the combustion chamber, through the front grilles of the stove and is thus distributed throughout the room.
A connection for an external air supply is located on the rear of the room heater, through which the cold room air is drawn in or, if you use an external air supply, fresh air is drawn in and heated and released into the room.
Technical data:
- Overall dimensions: height 97 cm, width 61 cm, depth 49 cm
- Flue pipe diameter: Ø 150 mm (adapter to 130 mm included)
- Weight: 85 kg
- Colour: black
- Minimum distance to combustible materials from the side: 150 cm
- Minimum distance to combustible materials from the front: 150 cm
- Minimum distance to combustible materials from the rear: 20 cm
- 9 kW rated output
- 4 kW - 10kW heat output range
- Efficiency: 85 %
- Exhaust gas temperature: 175 C
- Exhaust gas mass flow rate: 8.1 g/s
- Dust emission in relation to 13 % O2: 35 mg/sec. to 13 % O2: 35 mg/Nm3
- CO emission re. to 13 % O2: 1247 mg/Nm3
- NOx emission at 13 % O2: 74 mg/Nm3
- CxHy emission at 13 % O2: 105 mg/Nm3
- Minimum delivery pressure: 12 Pa
- Energy efficiency class: A
- Suitable fuels: logs, wood briquettes
- Complies with BImSchV stage 2 for Germany and 15a-B-VG for Austria.
- Meets the requirements of the BStV of the cities of Munich, Regensburg and Stuttgart, FBStVO of the city of Aachen
- Meets the Swiss Clean Air Ordinance
- Construction type 2 - multiple occupancy on the chimney is not possible.
- Testing in accordance with DIN EN 13240:2001
Delivery is by forwarding agent, free kerbside.
