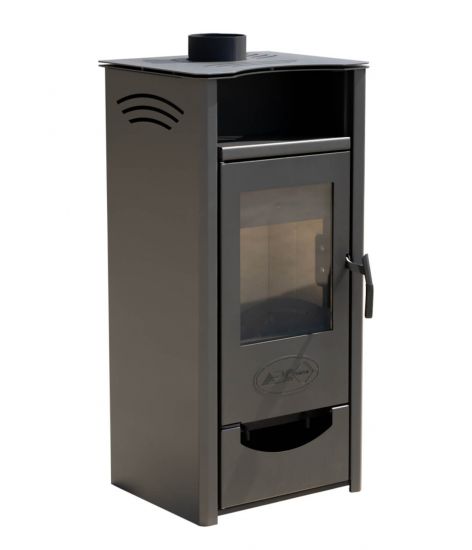

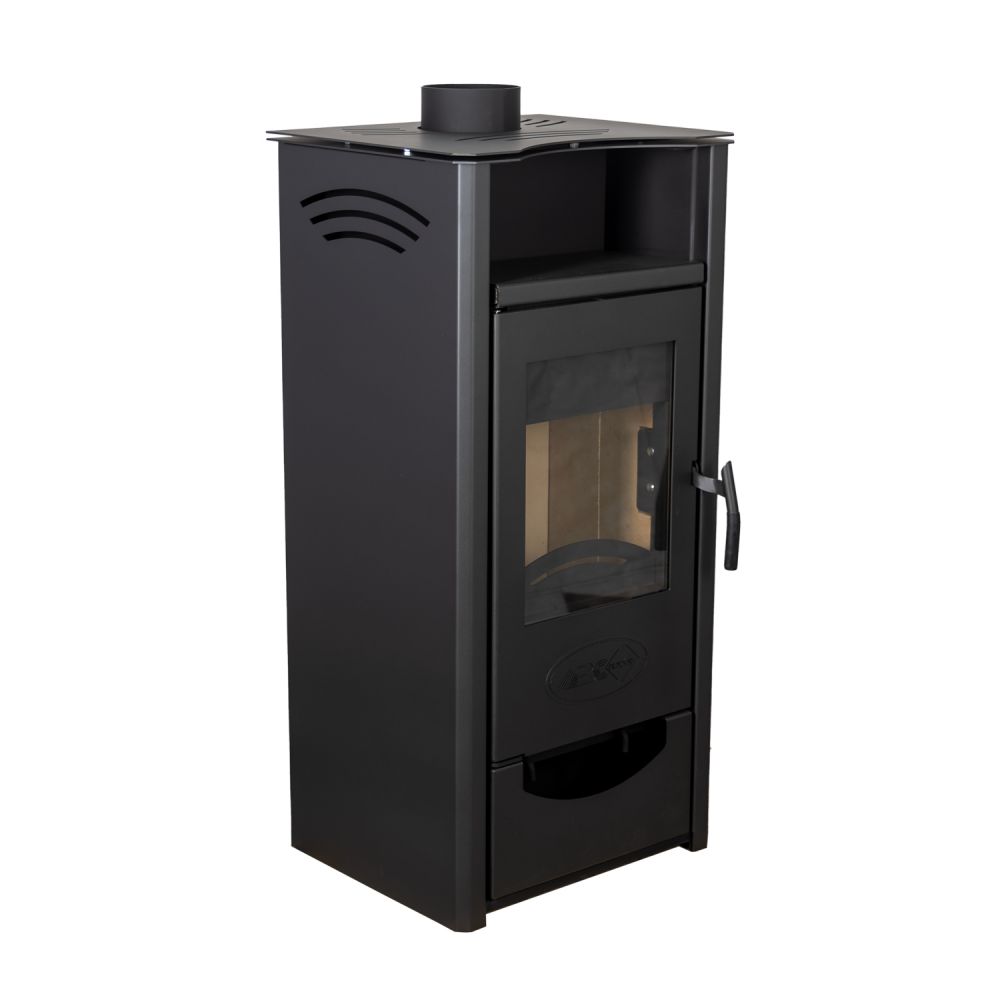

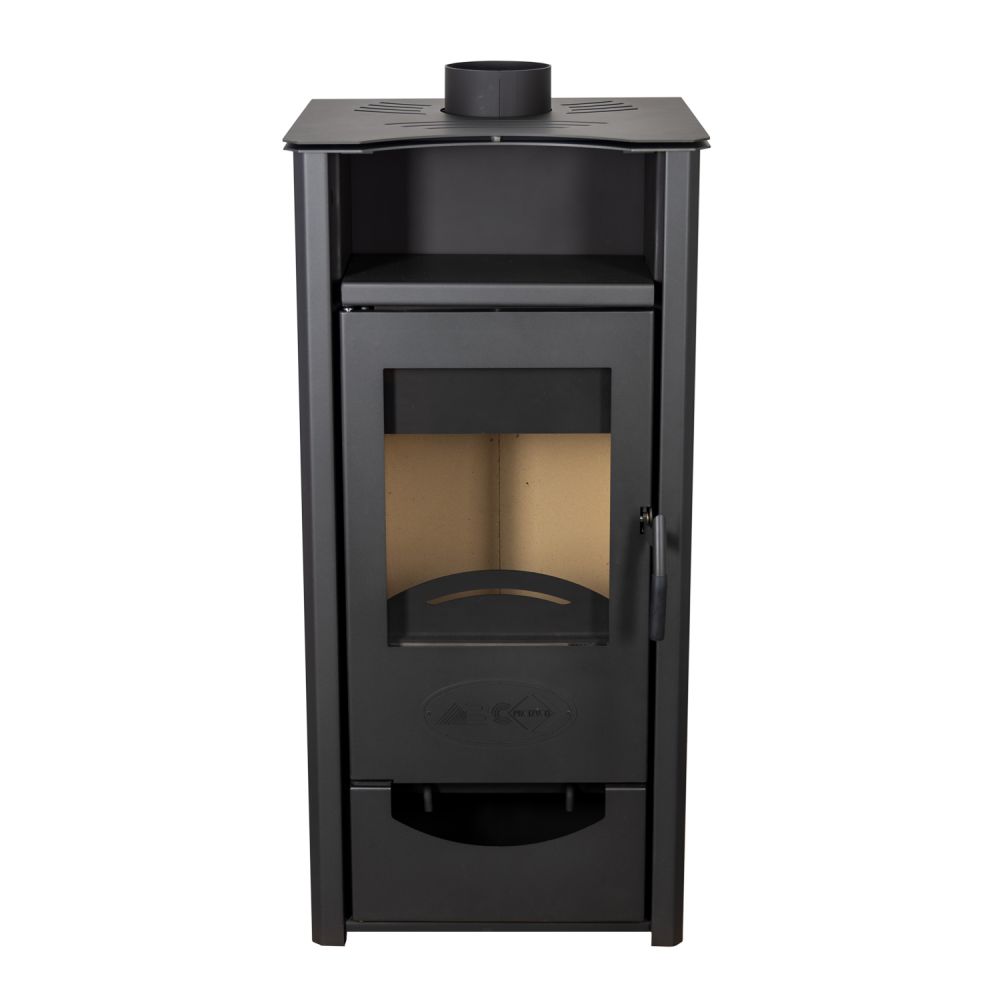

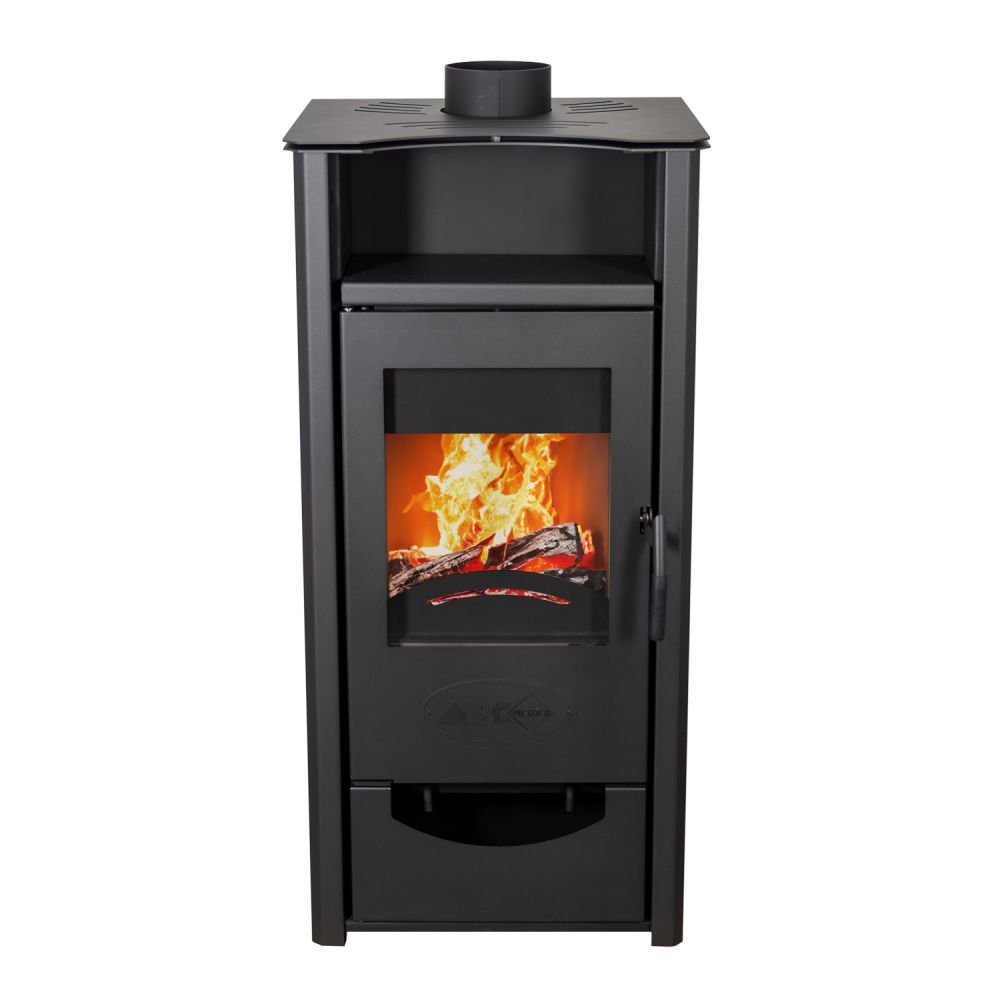

With this high-quality wood-burning stove, you can enjoy the warmth and cosiness you desire in your home. Its elegant and modern look ensures that it blends seamlessly into any room.

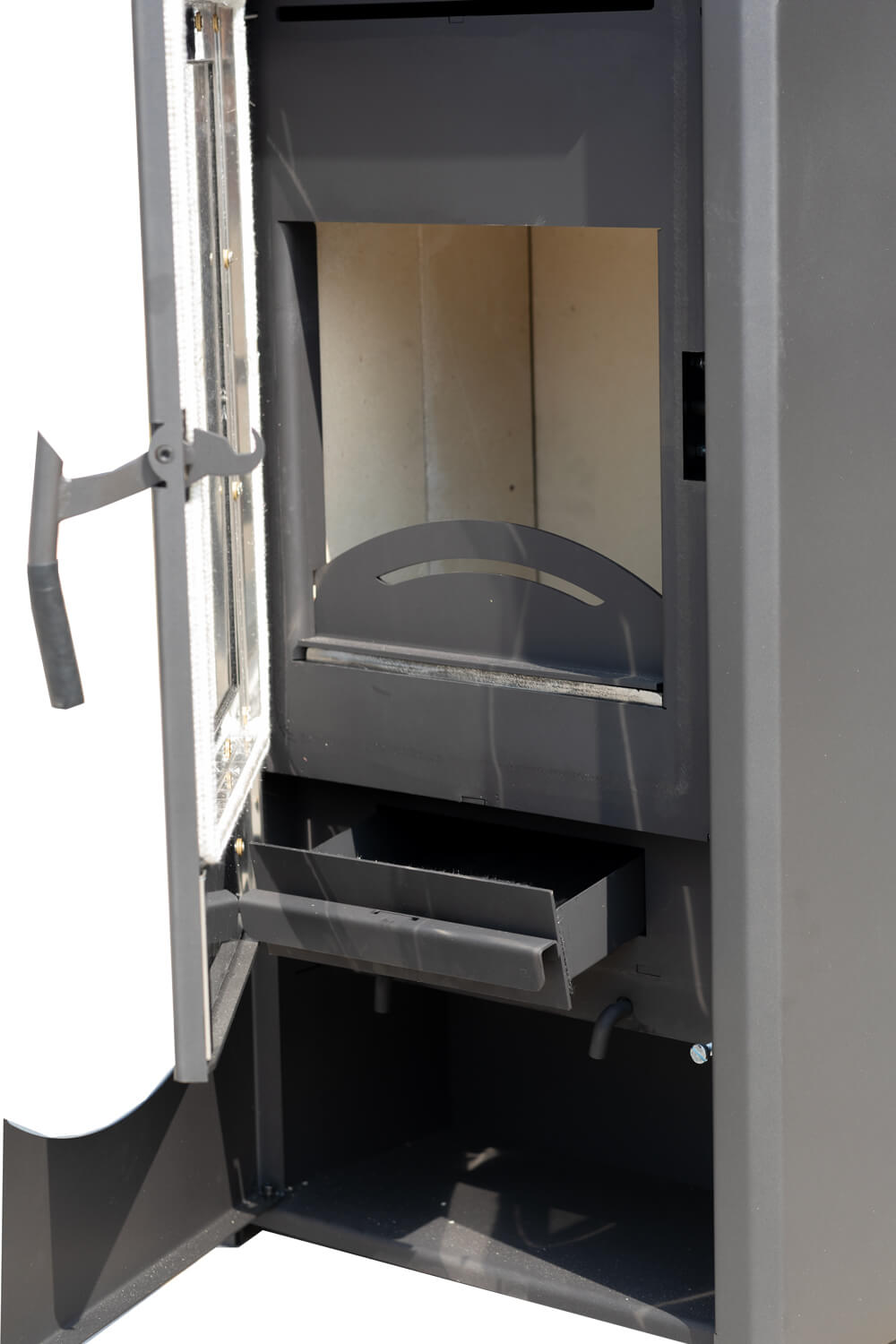

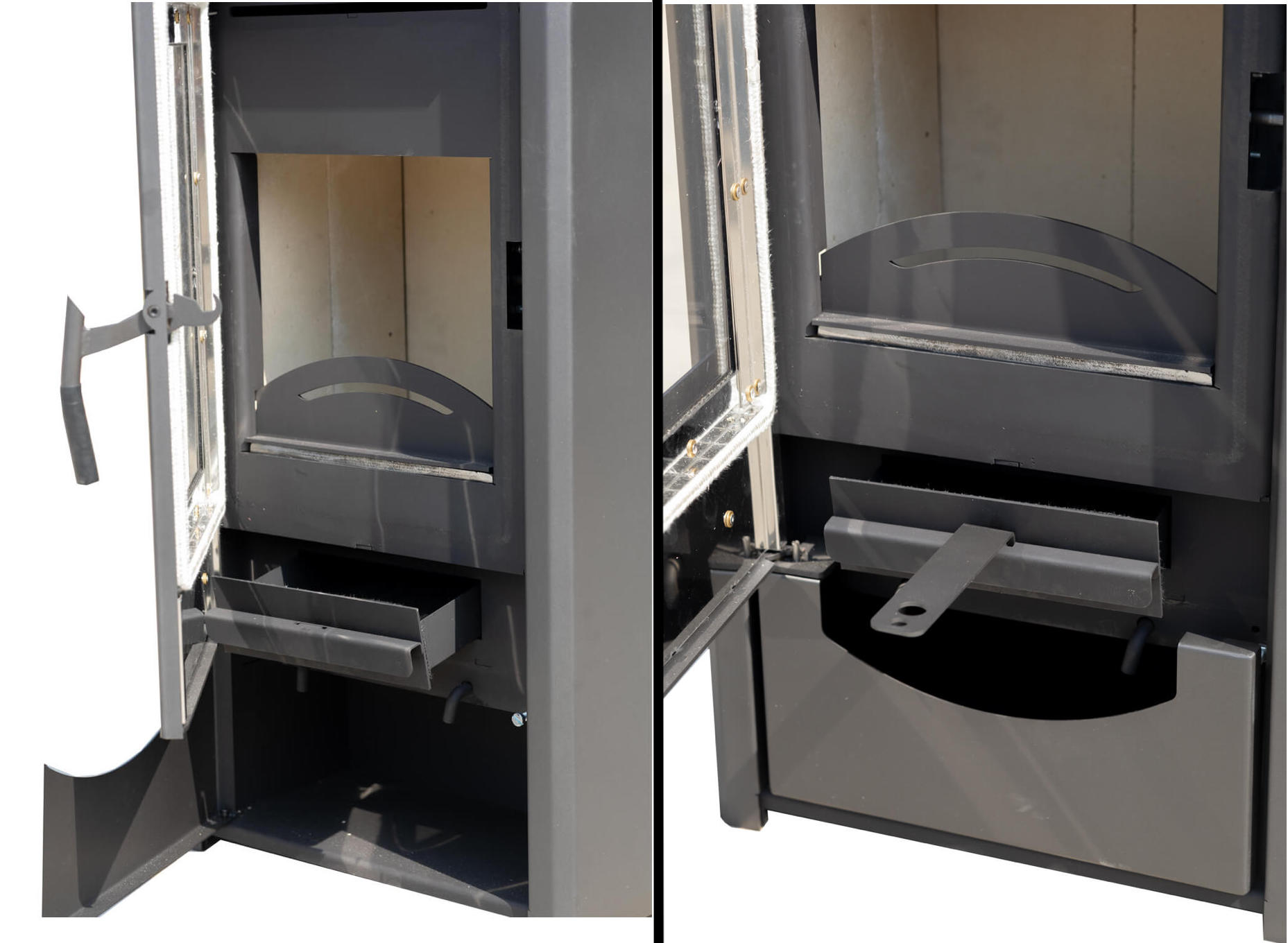

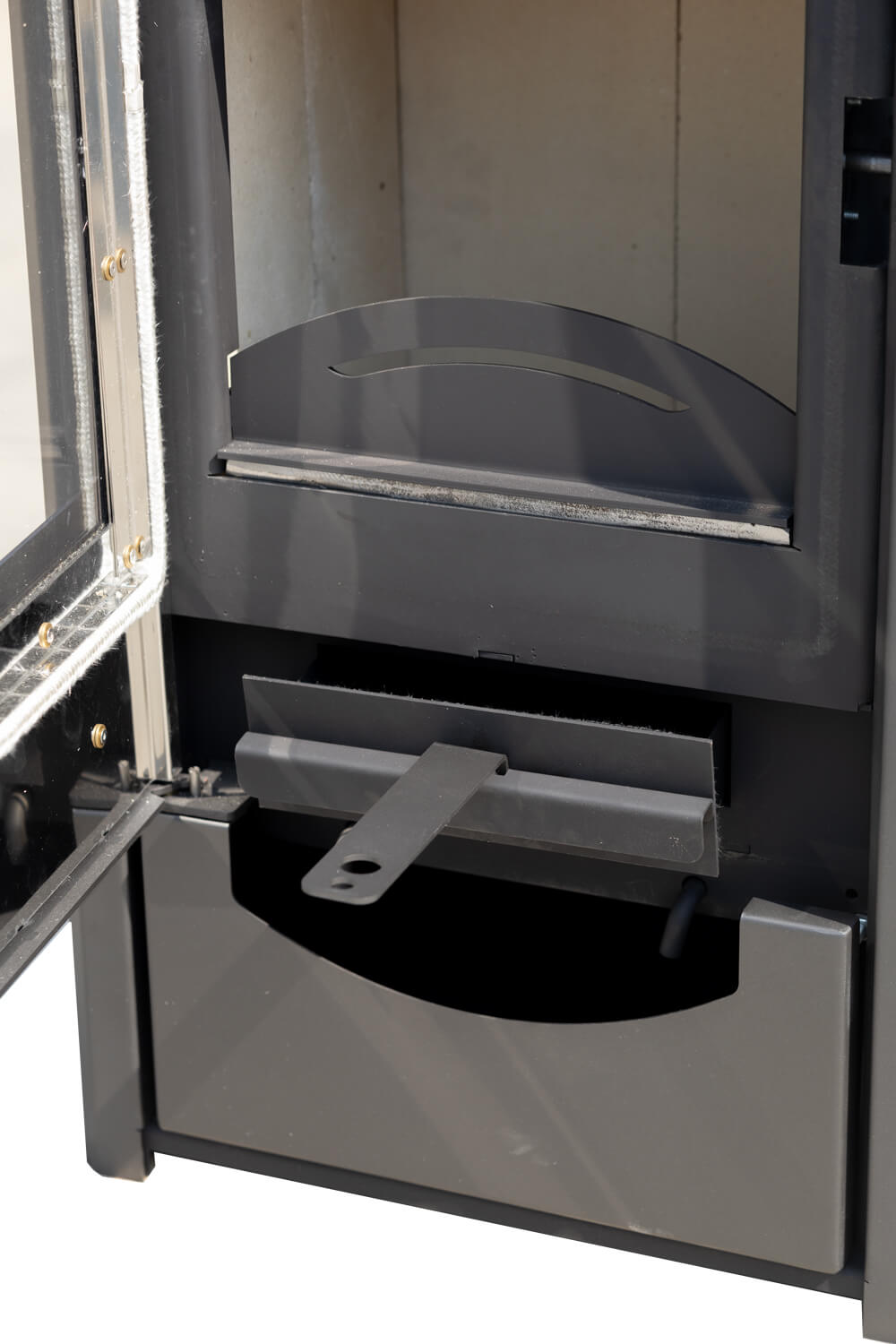

The combustion chamber of the stove is lined with fireclay bricks, which ensures efficient combustion. Integrated viewing windows allow you to enjoy the flames, and the removable ash compartment makes cleaning easier.

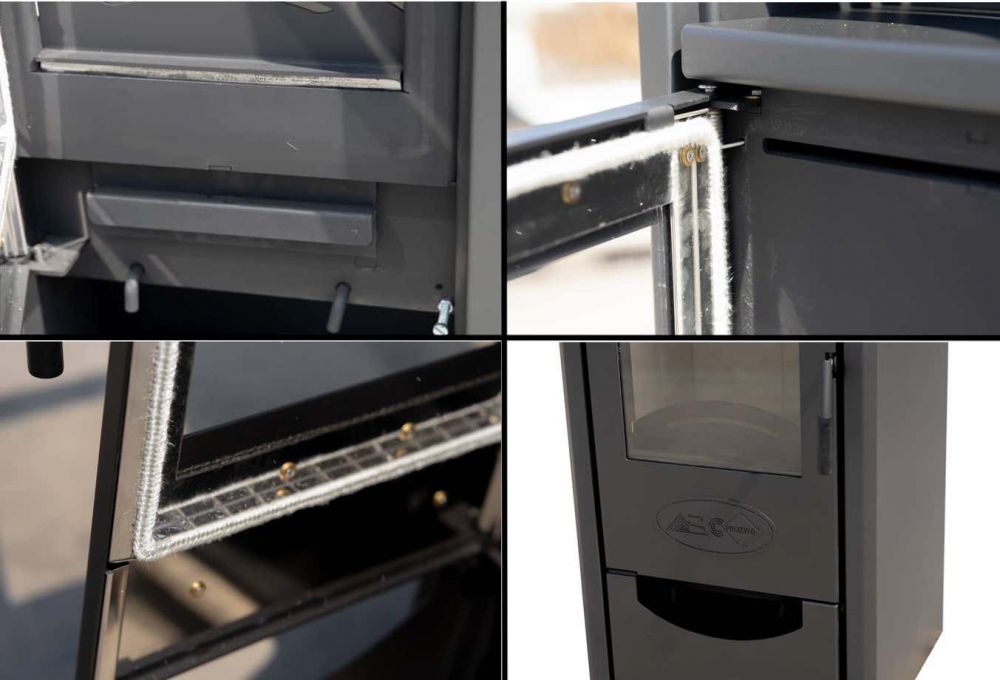

Thanks to the fireproof glass on the door to the firebox, you can create the impression of a real fireplace. Secondary ventilation openings channel air into the glass door area of the firebox, creating a pyrolysis effect and preventing the formation of soot on the glass.
The state-of-the-art control for the primary and secondary air supply allows you to adjust the intensity of the fire to your liking and precisely control the heat output.
Design 1 - Multiple flue connections are possible.
Technical data:
- Overall dimensions: height 119 cm, width 54.2 cm, depth 51.6 cm
- Combustion chamber: Width 32 cm, height 29 cm, depth 28.5 cm, logs up to 40 cm long
- Flue pipe diameter: Ø 150 mm
- Weight: 155 kg
- Colour: Black

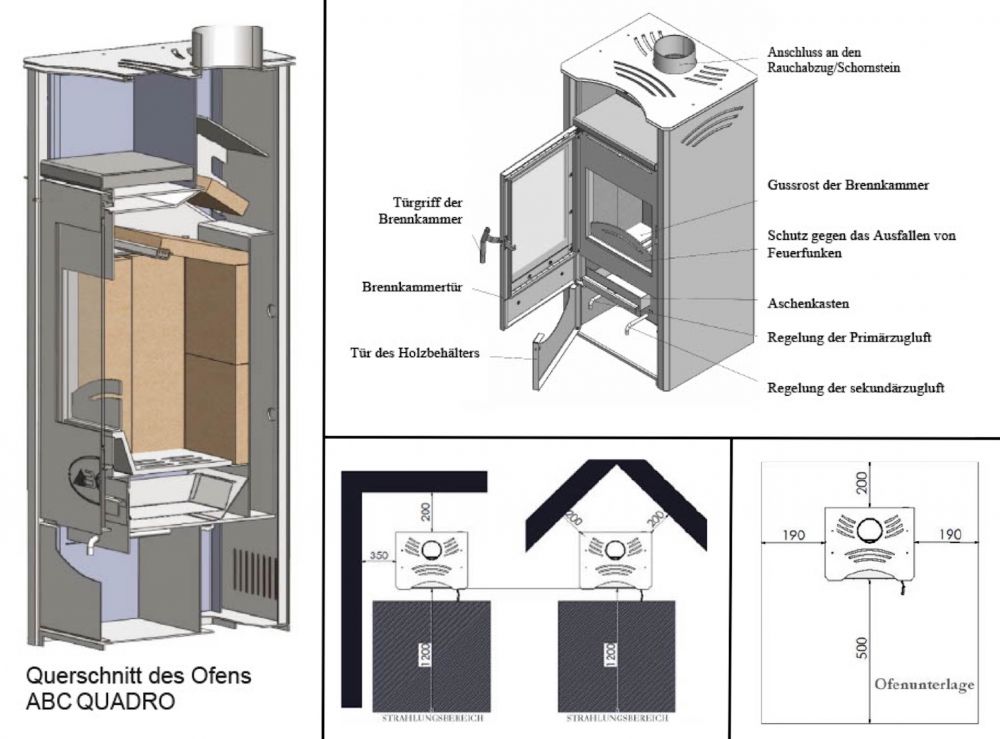

- Minimum distance to combustible materials from the side: 20 cm
- Minimum distance to combustible materials from the rear: 20 cm
- Minimum distance to combustible materials from the front: 50 cm
- 9.5 kW rated power
- Power range: 5 - 10 kW
- Efficiency: 72.9 %
- Exhaust gas temperature: 242.4 C°
- Exhaust gas mass flow 9.8 g/s
- Dust emission req. to 13 % O2: 20 mg/Nm3
- CO emission re. to 13 % O2: 1002 mg/Nm3
- NOx emission at 13 % O2: 133 mg/Nm3
- OGC emission at 13 % O2: 69 mg/Nm3
- Minimum delivery pressure: 12 Pa
- Energy efficiency class: A
- Suitable fuels: logs, wood briquettes, coal briquettes
- Complies with BImSchV stage 2 for Germany and 15A-BVG for Austria.
- Type 1 - multiple occupancy possible
- Delivery is by a forwarding agent, free kerbside.
